Flanges para Placas

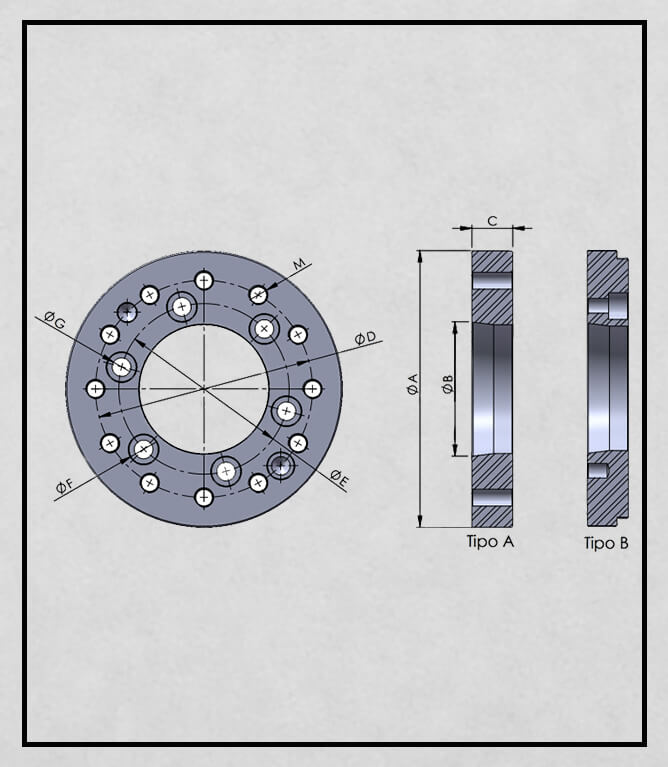

| TIPOS DE FLANGES |
| CÓDIGO |
ØA |
ØB |
C |
ØD |
ØE |
ØF |
ØG |
M |
| FLA5-BH165 |
140 |
82.54 |
20 |
104.8 |
- |
- |
- |
Ø12 |
| FLA5-BH210 |
170 |
82.54 |
24 |
133.4 |
104.8 |
18 |
11.5 |
M12 |
| FLA5-BH250 |
220 |
82.54 |
24 |
171.4 |
104.8 |
20 |
13 |
M16 |
| FLA6-BH165-B |
165/140 |
106.36/85 |
35 |
104.8 |
133.4 |
20 |
13 |
M10 |
| FLA6-BH210 |
170 |
106.36 |
20 |
133.4 |
- |
- |
- |
Ø13 |
| FLA6-BH250 |
220 |
106.36 |
24 |
171.4 |
133.4 |
20 |
13 |
M16 |
| FLA8-BH165-B |
210/140 |
139.70/70 |
35 |
104.8 |
171.4 |
25 |
17 |
M10 |
| FLA8-BH210-B |
210/170 |
139.70/90 |
40 |
133.4 |
171.4 |
25 |
17 |
M12 |
| FLA8-BH250 |
220 |
139.70 |
20 |
171.4 |
- |
- |
- |
Ø17 |
| FLA8-BH315 |
300 |
139.70 |
30 |
235 |
171.4 |
25 |
17 |
M20 |
| FLA8-BH400 |
300 |
139.70 |
30 |
235 |
171.4 |
25 |
17 |
M20 |
| FLA8-BH450 |
300 |
139.70 |
30 |
235 |
171.4 |
25 |
17 |
M20 |
| FLA8-BH500 |
380 |
139.70 |
32 |
330.2 |
171.4 |
25 |
17 |
M20 |
